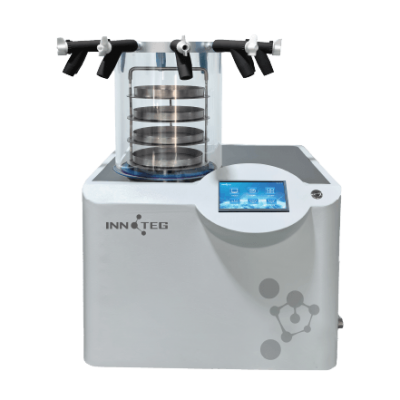

InnoFreeze Pro Multi-Purpose Desktop Freeze Dryer (Standard multi-manifold type)
InnoFreeze Pro is a multi-purpose desktop freeze dryer with exceptional refrigeration performance, a fully functional control system, and professional structural design. It has multiple configurations of drying chamber apparatus including standard type, multi-manifold type, and standard multi-manifold type
.
Standard multi-manifold type
Incorporates functionalities of both the Standard Type and Multi-Manifold Type
Main Components
Embraco Compressor | Vacuum pump | Inficon Vacuum gauge | Condenser with multiple Sealing Rings
Ultra-Low Temperature Refrigeration System
- Exceptional Cooling Performance: Maximum ice condensation capacity of 7 kg, with the Lowest Condenser Temperature as low as -110°C
- Equipped with a fully enclosed compressor imported from Europe, utilizing single-machine mixed environmentally friendly refrigeration technology, independent plate heat exchanger, high-power condenser, ensuring stable operation of the entire refrigeration system with minimal vibration and low noise, resulting in low condenser temperatures
Comprehensive Control System
- Control program with a +5” color touchscreen that displays and records vacuum, condenser temperature, and material temperatures, generating a freeze-drying curve. It can continuously record data on material and equipment conditions, supporting offline data browsing, analysis, printing, and storage, with a USB data storage serial port
- Features automatic detection of vacuum level; if the vacuum level does not meet standards, the vacuum pump operation will cease
- Includes cumulative usage time function for the vacuum pump, providing reminders for timely replacement of vacuum pump oil
- Features secondary start delay protection for the compressor and thermal overload protection device
- Equipped with a double-stage rotary vane vacuum pump with anti-backflow design, utilizing international standard KF25 quick-connect clamps
- The freeze-drying sublimation process can be controlled automatically or manually
Professional Structural Design
- The machine casing features an integrated arc structure, with a screen that protrudes at a 45°angle, adhering to ergonomic principles while being simple, elegant, and aesthetically pleasing. The top contact surface of the unit is made of 304 stainless steel plate, resistant to corrosion and acid-alkali
- The condenser has a large opening, with no refrigeration coil inside, facilitating faster sublimation rates and easier cleaning. The entire material rack can be fully placed within the condenser chamber, offering a sample freezing function without the need for an additional ultra-low temperature freezer or liquid nitrogen for freezing
- Unique condenser flange cold bridge condensation prevention design, with a specially designed wavy sealing ring, molded for multiple sealing protections
